Fusion Fluid

Fusion Fluid Equipment is a manufacturer of dynamic mixers, mixing accessories, and complete agitation systems for various processes for use in industrial and sanitary mixing applications. Whether you require standard or custom equipment, let Fusion Fluid confidently handle your projects ranging from simple to complex. Centrally located in Whitehall, MI, Fusion Fluid can provide custom agitation solutions with quick deliveries.

View Website

FUSION FLUID Mixers & Agitators

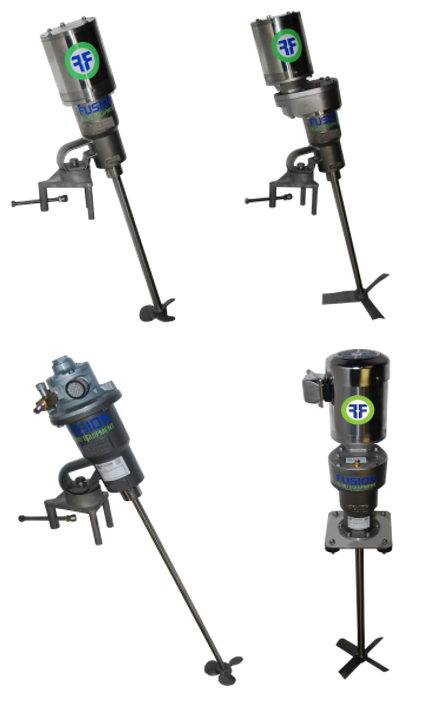

Pro & Pro Stainless Series

Lightweight, but rugged, this mixer series features a one-piece, investment- cast aluminum bearing housing with two oversize bearings for high performance and a long service life.

Sealed tank configurations can be achieved through the use of various Lipseals, High Pressure Stuffing Boxes, and assorted Mechanical Seals.

EXAMPLE APPLICATIONS

  • Chemical Processing
  • Petroleum
  • Ethanol
  • Biofuel
  • Industrial Blending
  • Industrial Mixing
  • Waste Water
  • Inks and Dyes

SPECS

  • Direct Drive: ¼ - 5HP 1150-1750 RPM
  • Gear Drive ¼ - 5HP 175-350 RPM
  • Batch: 5 to 3,000 Gallons
  • Shaft Length: Up to 120”FMB

Pro Series Mounting Options:

  • Cup
  • Clamp
  • Plate
  • Plate w/Angled Riser
  • ANSI Flange
  • TriClamp Flange

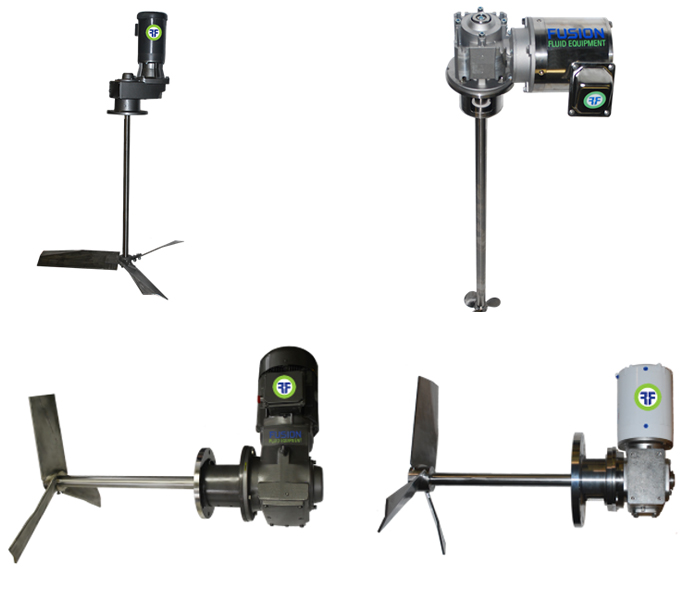

Flow Parallel Shaft & Right Angle Drive Series

Heavy-duty and extremely flexible, the Flow Series Parallel Shaft & Rigt Angle Drive mixers are designed to meet the needs of your large scale industrial, chemical or sanitary mixing applications.

Closed Tank configurations are available with vapor seals, stuffing box glands (up to 150PSI) and single or double mechanical seals (300+ psi).

In-tank shutoff mechanism allows seal changes on side entry mixers without emptying the tank.

EXAMPLE APPLICATIONS

  • Industrial Mixing & Blending
  • Large Scale Sanitary
  • Biopharma
  • Reaction Tanks
  • Low or High Viscosity Blending
  • Large Scale Wastewater
  • And More

SPECS

  • Gear Drive: ¼ - 100HP 3-400 RPM
  • Batch: 50 to 1,000,000 Gallons
  • Shaft Length: Up to 360”FMB

Flow Series Mounting Options:

  • ANSI Flange
  • TriClamp Flange
  • Beam

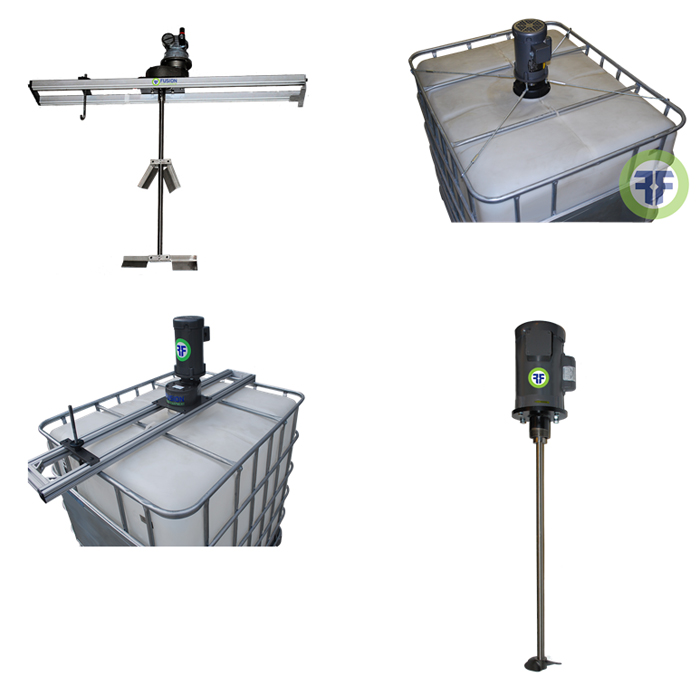

Drum & Tote Mixers

Fusion Drum & Tote mixers are designed for quick setup and enhanced portability while providing uniform drum mixing. Standard and custom designs are available to meet your needs.

Bridge Mount tote mixers offer an ultra robust platform for aggressive mixing. These attach across the top rails of cage style totes that are up to 52” wide, and can quickly and easily be moved from tote to tote. Cap Mount Tote mixers mount directly to a Schutz style 6” screw cap. Our tie rod mounting kit is included to provide additional stability.

EXAMPLE APPLICATIONS

  • Industrial Tote Mixing & Blending
  • Material Storage
  • Chemical Tote Mixing
  • Low or High Viscosity Batches
  • Subtle or Aggressive Agitation
  • Small Systems

SPECS

  • Direct Drive: ½ - 3HP 1150-1750 RPM
  • Gear Drive: ½ - 3HP 230-350 RPM
  • Batch: 55 gallons (typical)
  • Shaft Length: 30” FMB

Drum and Tote Mixer Options:

  • TOTE STYLE FOLDING IMPELLERS DESIGNED FOR LIMITED-ACCESS VESSELS

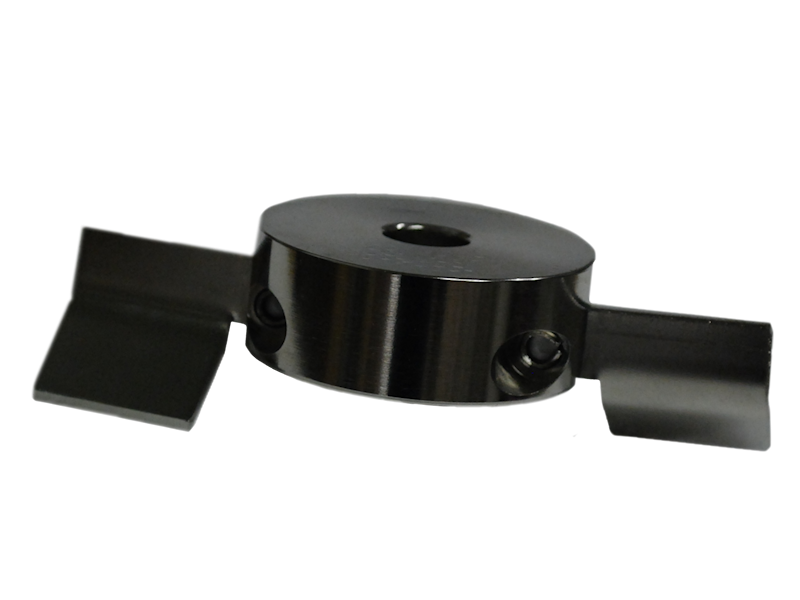

  • 2" DRUM BUNG FOLDING IMPELLERS DESIGNED FOR LIMITED-ACCESS VESSELS

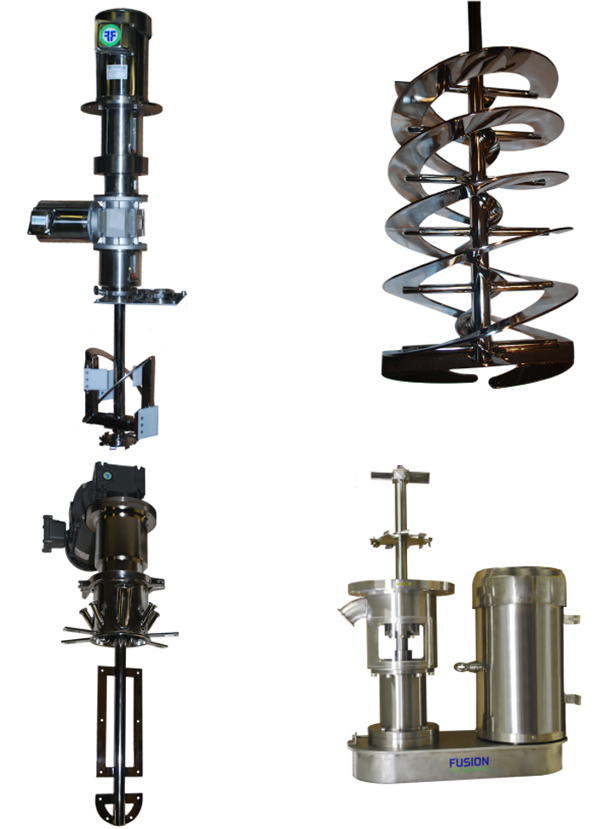

Custom Mixer Configurations

Fusion Fluid realizes that every application is different. They also realize that not all applications can be handled with standard mixers. This is why we are pleased to offer customized solutions for those who have specific process needs.

When you need custom engineered equipment for your specific process, you want Fusion Fluid. Offerings span a wide range from highly customized mixers to our standard mixers that have been modified and accessorized.

EXAMPLE APPLICATIONS

  • High Viscosity Mixing
  • Sanitary & BioPharm
  • Special Process
  • Chemical Resistance
  • Automation

SPECS

  • Direct Drive:1/40-100HP 870-3600 RPM
  • Gear Drive: 1/20 - 100HP 4-720 RPM
  • Batch: As Req’d
  • Shaft Length: Up to 360”FMB
